PRODUCT ITEM
- (P / NO)
- SPEC.
- RG58｜142｜174｜223｜316, Bulkhead, SMA Female Crimp
- LYS CLASS NO.
- SMA805 Series – for Coaxial Cable
- PATENT
- Anti-Slip Annular Section
● Impedance：50Ω | Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
| Thread Length：11.4 | |||
| Cable Type | Total L. | P /No. (SMA) | P /No. (RP-SMA)) |
| RG58 | 22.6 | SMA805-58 | RSMA805-58 |
| RG142/RG400 | 22.6 | SMA805-142 | RSMA805-142 |
| RG174/RG316 | 19.8 | SMA805-316A | RSMA805-316A |
| RG174/RG316 | 21.2 | SMA805-174 | RSMA805-174 |
| RD223 | 22.6 | SMA805-223(D) | RSMA805-223(D) |
| RD316 | 21.2 | SMA805-174(D) | RSMA805-174(D) |
| LIH YEU SHENG Industries Co.,LTD. | |||
| Thread Length：13.0 | |||
| Cable Type | Total L. | P /No. (SMA) | P /No. (RP-SMA) |
| RG174/RG316 | 21.2 | SMA805A-174 | RSMA805A-174 |
| Unit：mm | |||

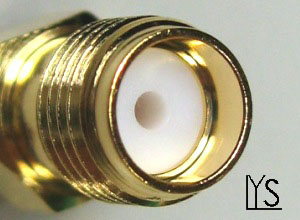

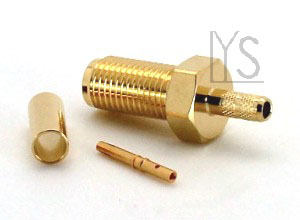

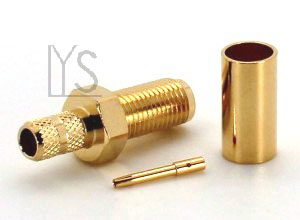

SMA&RP-SMA Female Bulkhead Crimp Type For RG Cable
